Hyundai's New Bloom Caster for Automotive Applications

Primetals Technologies supplied ­Hyundai's Dangjin steelmaking plant with a new 4-strand bloom caster designed to facilitate the production of a vast array of automotive parts. The plant serves Hyundai's large car-manu­facturing infrastructure and specializes in high-end applications such as ultra-high carbon steels, special forgings, ball bearings, axles, springs, and gearbox parts. The caster provided by Primetals Technologies features a uniquely customized set of technological packages and was installed so efficiently that the initial start-up could be executed almost one month ahead of schedule.

Hyundai's Dangjin steelmaking plant has the main objective of producing the highest-quality steel for Hyundai Motor Group. As it targets very distinct steel grades, the overall plant setup is highly customized and designed to fit Hyundai's needs. This trickles down to the individual facilities within the plant, which each demonstrate the same degree of specificity and adhere to strict quality control guidelines in order to meet Hyundai's internal ISIR certification program throughout the entire steel production complex.

Overall, the Dangjin plant within Hyundai covers the complete portfolio of steels necessary for the automotive industry. The facility in which the new bloom caster was installed is dedicated to unexposed car parts. Its capabilities therefore entail the manufacture of bearings, axles, engine parts such as pistons and many other components. It is clear that the production requirements for these types of high-end applications demand the use of state-of-the-art technologies, and that very strict production parameters have to be reliably kept and enforced. Also, great care must be taken in both the design and construction of all plant equipment.

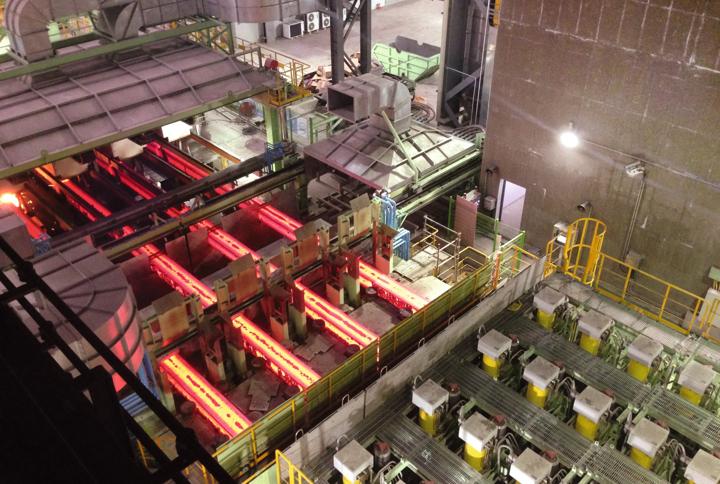

Primetals Technologies supplied Hyundai with a new 4-strand bloom caster that is equipped with the latest mold-level control system and an instrumented mold with breakout prediction. The provided equipment for the heavy-­section bow-type caster is capable of precisely producing the crucial steel grades required for engine and gearbox parts. Hyundai can manufacture ultra-high carbon wire as well as special forgings and ball bearings from these blooms. Even large-sized car components, such as axles, crankshafts, and springs, are possible. The capacity of the caster is 1.1 million tons of superb-­quality blooms per year.

When Hyundai approached Primetals Technologies about the bloom caster project, the requirements were extremely specific. To guarantee an outstanding quality in the final product, engineers at Primetals Technologies—in close cooperation with Hyundai's experts—elected to bundle a selection of powerful and well-proven solutions to develop a new caster configuration that would be unique in the industry.

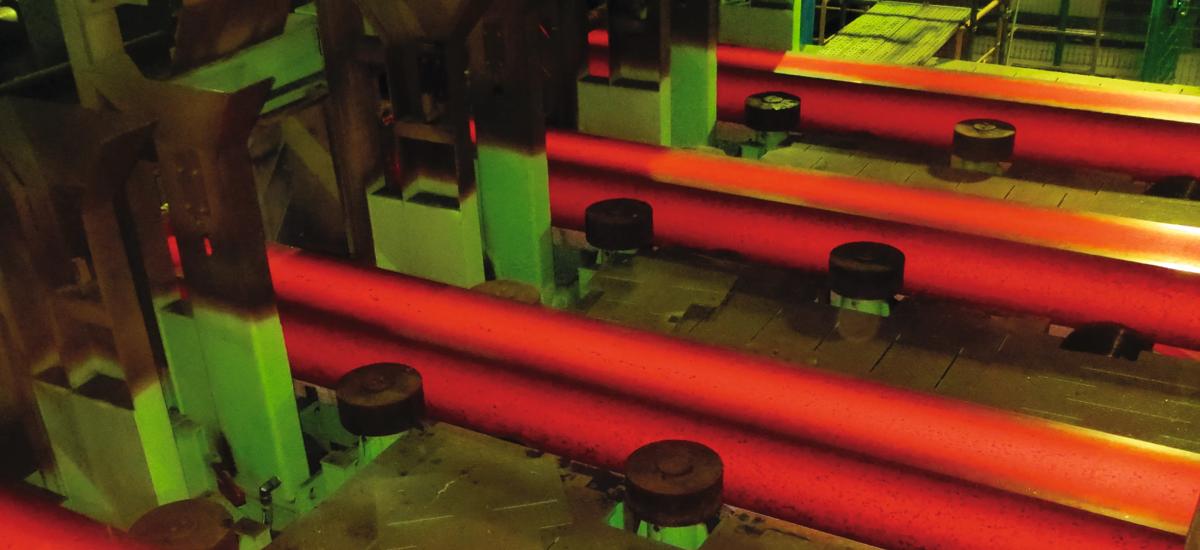

In combination with air-mist spray cooling and internally cooled rollers in the strand-guidance system, a custom-­tailored set of innovative technology packages was chosen and fine-tuned to ensure reliable and uniform bloom production. One of the core design aspects was that the blooms would be fed into the bar line for direct rolling when still hot. This would save energy during reheating and improve operating safety, as there would be no need to transfer the blooms with the use of cranes. To support the production of special steel grades, an inline bloom­-quenching facility was provided.

Primetals Technologies implemented the carefully designed Dangjin bloom caster for Hyundai with great success, smoothly achieving the targeted completion date. In fact, the caster could be started up almost a full month ahead of schedule. Hyundai's new 4-strand bloom caster will not only be able to meet the current demands of Hyundai Motor Group, but offers the flexibility to respond to future developments and changing needs as well.

For the production of automotive steel grades, DynaTac dry-casting technology offers decisive benefits. Automotive grades are often alloyed with niobium, vanadium, titanium, and boron, which makes them prone to the formation of high-temperature soluble precipitates (carbides and nitrides). These precipitates often arise at the grain boundaries and may cause steel embrittlement and intergranular surface cracks to form during the unbending process. For this reason, it may be necessary to completely turn off the secondary cooling water for the production of certain critical steel grades in order to remain above a critical temperature before unbending takes place. Another advantage is that when hot-charging practices are applied, higher strand exit temperatures are achieved with DynaTac dry-casting, which saves time and costs at the reheating furnace before the blooms are charged to the rolling mill. As the complete strand guide is designed for dry casting, the lifetime of the equipment is much higher, resulting in the lowest cost per ton of cast steel. For all of these reasons, Hyundai chose DynaTac dry-casting technology to be installed in its bloom caster.
