Tandem Cold Mill Automation

The tandem cold Mill automation system revolutionizes the cold rolling process by providing tools to achieve superior product quality, enhanced production efficiency, and reduced material waste. This is accomplished through precise control over rolling parameters, including uniform thickness and flatness, optimized rolling speeds, and minimized off-gauge production.

The system enhances efficiency and quality by precisely controlling rolling parameters such as speed and tension. It employs sophisticated models for pass schedule calculation, rolling force, and flatness control. These models utilize machine-learning data to optimize load distribution, strip temperature, and speed settings, ensuring optimal thickness quality and a superior surface finish.Automation for tandem cold mills works by analyzing real-time data to minimize off-gauge lengths, ensuring that each strip meets precise gauge specifications. Constant mass flow is maintained through advanced algorithms, ensuring precise gauge corrections and minimizing thickness deviations. Process speeds are continuously monitored and adapted to mitigate mill chatter, maintaining smooth operation.Precision control systems collaborate to maintain uniform thickness, consistent edge quality, and optimal flatness. These systems use real-time sensor data to dynamically adjust rolling parameters, ensuring that the rolled strip meets thickness and flatness requirements throughout the operation.

Benefits of Automation Systems for Tandem Cold Mills

• Improved strip quality: achieve uniform thickness and flatness, essential for high-quality steel products.
• Increased productivity: optimize rolling speeds and minimize downtime with advanced Level 2 supported by neuronal network and basic automation control systems.
• Enhanced flexibility: adapt to new materials and allows a various and flexible product mix with neural network-based setups.
• Reduced waste: minimize off-gauge production and enhance yield through precise mill setups.
• Cost efficiency: achieve significant cost savings by optimizing material use and tracking.

Features of Automation Systems for Tandem Cold Mills

• Level 2 and Advanced Rolling Models: enhances the rolling process by using advanced models to adjust load distribution and speed settings based on real-time data, optimizing efficiency and performance. Temperature models control strip temperature during the rolling process, improving process stability and ensuring consistent results to achieve required material properties.
• Coil Eccentricity Expert: compensates for coil eccentricity, addressing tension oscillations and thickness errors, especially at high rolling speeds, ensuring superior strip quality.
• Roll Eccentricity Expert: ensures uniform and accurate strip thickness by compensating for roll eccentricities.

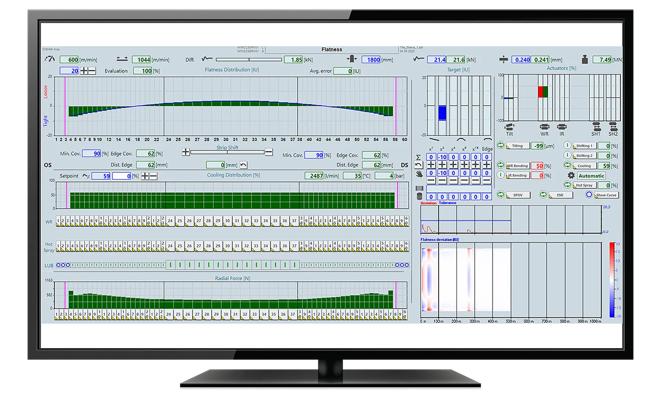

• Flatness Expert: provides model-based automatic flatness control for superior surface quality.
• Off Gauge Optimizer: enhances the integrated rolling process to minimize off-gauge lengths.
• Mass Flow Control: utilizes the Advanced Mass Flow Concept to maintain constant mass flow throughout the mill, ensuring precise gauge corrections and minimizing thickness deviations.
• Feed-Forward Control: corrects incoming gauge deviations by adjusting the mill stand settings in real-time, ensuring consistent product quality.
• Feedback Control: ensures precise strip thickness and flatness by continuously adjusting the roll gap and tension based on real-time sensor data. This process maintains consistent product quality and enhances operational efficiency by automatically correcting deviations from desired specifications.
• Real-Time Data Analysis: provides real-time recording and analysis of process data, enabling quick diagnostics and trouble shooting to maintain optimal mill performance.
• Edge Drop Control: precisely manages the edge thickness of the strip, ensuring consistency across the width and enhancing the overall quality of the final product.
• Chatter Block Controller: monitors and adapts process speeds to mitigate mill chatter.
