Coil Handling and Compacting Systems

The vertical stem pallet and horizontal hook carrier systems from Primetals Technologies are designed with a modular structure, incorporating standardized components to simplify maintenance. Both the horizontal and vertical coil compactor systems are engineered to integrate seamlessly with upstream coil handling systems as well as downstream unloaders, ensuring efficient transfer to coil storage and shipment.Coil handling and compacting systems from Primetals Technologies are delivered as comprehensive mechatronic packages. These systems combine mechanical and electrical components specifically designed to function together with standardized modules, offering enhanced value for any long rolling mill.

Primetals Technologies delivers coil handling systems and compactors as complete mechatronic packages that integrate mechanical and electrical components with standardized, proven modules. These systems are designed to enhance the efficiency and value of any long rolling mill. The horizontal hook systems offered by Primetals Technologies are not only highly reliable but also optimized for ease of coil inspection.

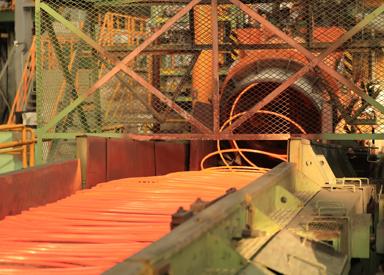

In the horizontal system, coil movement begins at the two-arm mandrel during the coil reforming process. From there, the coil transitions to the coil transfer car and then to the C-hook. It proceeds through inspection and trimming as it cools, subsequently entering the horizontal compactor, where it is weighed and unloaded. For greater flexibility in coil processing, the system can incorporate stations for loading unbound, loose, or damaged coils. These stations utilize a hook unit operating on a carriage to pick up the coil, which is then shifted and rotated for transfer either to a horizontal hook system or onto a stem positioned on a downender. From there, the coil continues on a pallet system to the compactor.

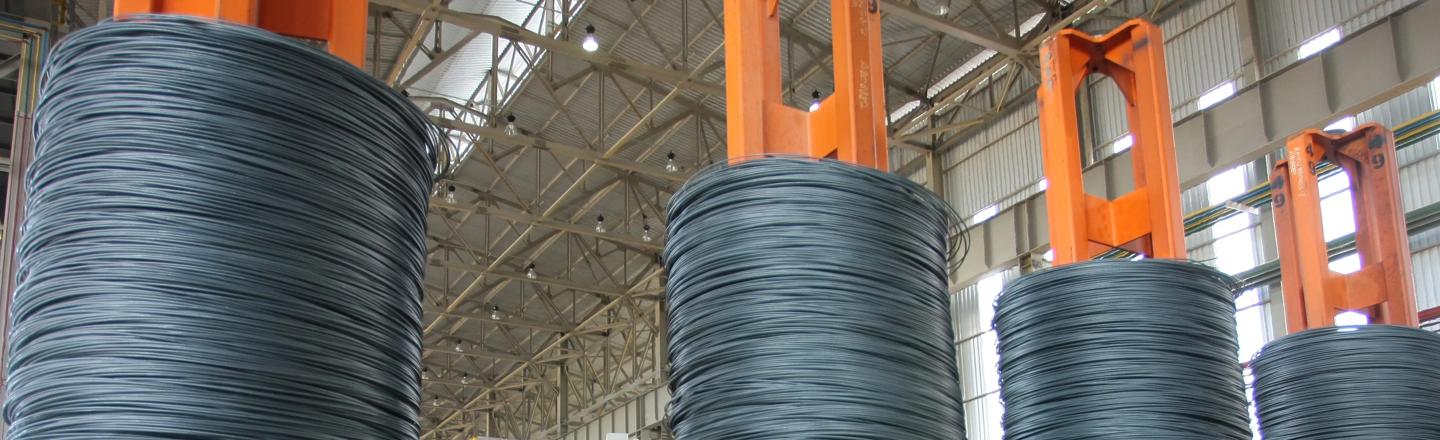

Vertical stem pallets are equipped with a base and a vertical central stem to support the coil fully during handling. These pallets are designed for straightforward installation and maintenance, with transport mechanisms confined to the mill floor. Standardized wheel modules and built-in sensors for coil tracking enhance operational efficiency. Turntable assemblies facilitate changes in the direction of coil movement, while elevators can be added to accommodate elevation changes within the system configuration. The horizontal compactor, typically interfaced with horizontal hook carrier systems, offers complete interchangeability between wire binding and strapping. This feature provides the flexibility needed to align with specific operational requirements.

Benefits of Coil Handling and Compacting Systems

• Fully customizable to meet specific production and coil processing requirements.
• Vertical stem pallets enable straightforward system installation and maintenance by confining transport mechanisms to the mill floor.
• Consistent setup and precise operation control of the mechatronic system provide full flexibility.
