Guide Mounting & Restbars for Long Rolling Mills

In long rolling mills, the precise positioning and support of metal strips are crucial for ensuring smooth movement and preventing misalignment during the rolling process. Guide mounting systems and restbars work in tandem to provide stable contact points at critical stages, particularly at the entry and exit of each rolling stand.

Proper guide mounting is critical for accurately directing rods and bars through the rolling mill. These systems enable easy guide changes, precise adjustments, and reliable operation in demanding environments. Available in various configurations, they are adaptable to different mill stands, including conventional and housingless designs. By integrating advanced guide mounting systems and restbars, long rolling mills can achieve precise alignment, reduced downtime, and enhanced overall productivity.

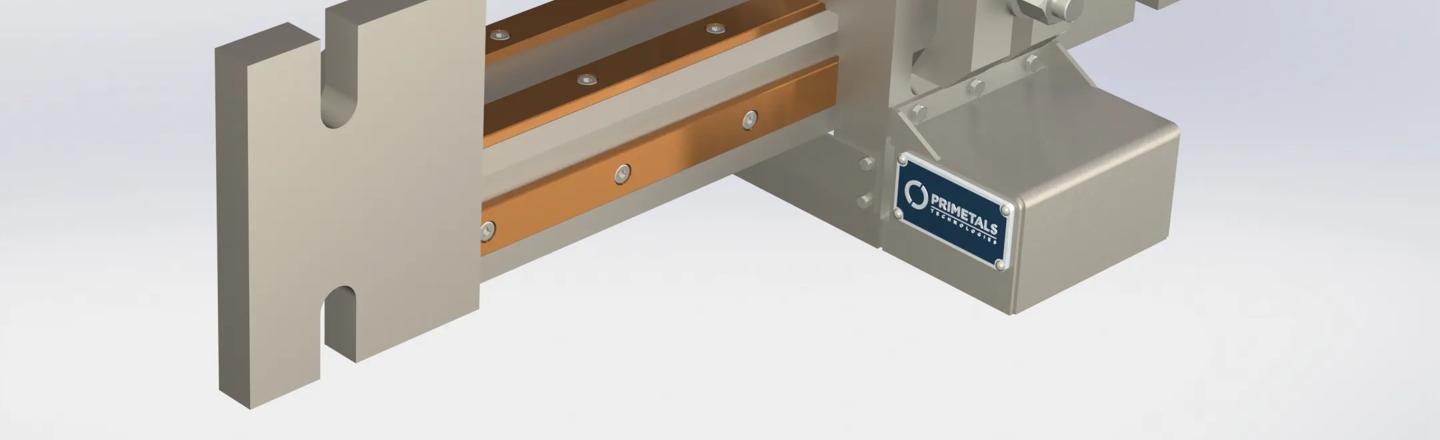

Standard Clamp Guide Mounting

The Standard Clamp Guide Mounting system is ideal for all conventional mill stands. It provides fine traverse adjustment for accurate groove alignment and interfaces with portable precision alignment systems for intermediate and finishing stands. Its rigid assembly ensures long-term operation, while durable materials extend the service life of critical components.

Standard Clamp Guide Mounting Features

• Fine traverse adjustment for precise groove alignment
• Compatibility with portable precision alignment systems
• Robust assembly for extended service life

Standard Clamp Guide Mounting Benefits

• Quick and simple guide changes
• Reliable alignment enhances rolling performance
• Replaceable components reduce maintenance costs

X' Clamp Guide Mounting

Specifically designed for rod finishing mill stands, the X' Clamp Guide Mounting system offers enhanced guide positioning with spring-loaded clamps, minimizing downtime during size changes. Its operator-friendly design allows for rapid adjustments using a single wrench, improving productivity.

X' Clamp Guide Mounting Features

• Spring-loaded clamp for quick size changes
• Adjustments can be made with a single wrench
• High-strength stainless steel construction

X' Clamp Guide Mounting Benefits

• Secure clamping facilitates optimal guiding
• Consistent settings improve product quality
• Precise and reliable guide location extends service life at high rolling speeds

Restbar Solutions

Restbars provide stable support for guides, ensuring accurate positioning as material passes through the rolling mill. Available in standard and automated configurations, they meet the diverse requirements of various mill setups.

Standard Restbars

Standard Restbars are suitable for all conventional mill stands and feature fine traverse adjustment for accurate groove alignment. Their rigid assembly ensures long-term operation, while sealed bearing locations minimize maintenance requirements. Replaceable critical wear components maximize service life.

Standard Restbar Features

• Fine traverse adjustment for precise groove alignment
• Rigid assembly for durability
• Sealed bearing locations to reduce maintenance

Standard Restbar Benefits

• Durable materials withstand demanding mill conditions
• Quick and easy guide changes
• Repeatable and dependable setup and adjustment

Automated Restbars

Automated Restbars offer remote-powered adjustments for roughing, intermediate, and finishing stands. With hydraulic clamp/unclamp and traverse functions, these systems enhance operator safety and reduce pass change time. Their compact design requires no modifications to existing stands and can also be operated manually for offline adjustments.

Automated Restbar Features

• Push-button remote operation
• Hydraulic clamp/unclamp and traverse functions
• Compact design requiring no stand modifications

Automated Restbar Benefits

• Increased operator safety and reduced pass change time
• Durable materials for demanding mill conditions
• Repeatable and dependable setup and adjustment
