Statis System for Rod and Bar Profile Gauge

The Statis gauge provides a precision measurement system for rod and bar rolling mills with minimum investment. It offers a reliable solution with minimal maintenance to maximize uptime, while the fixed high-resolution camera system allows measurement of critical parameters to ensure consistent, high-quality products.

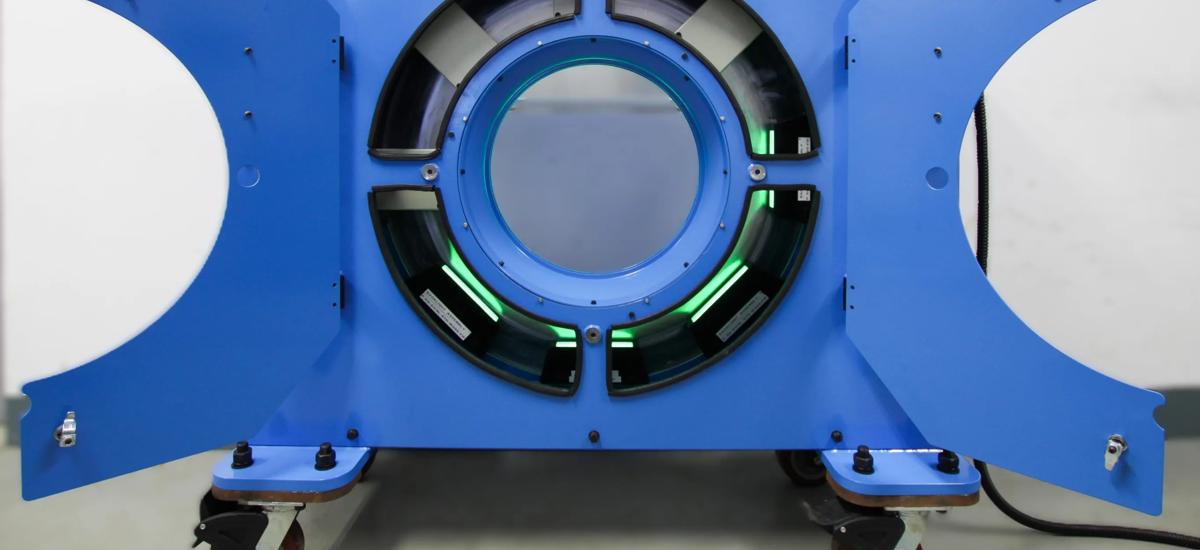

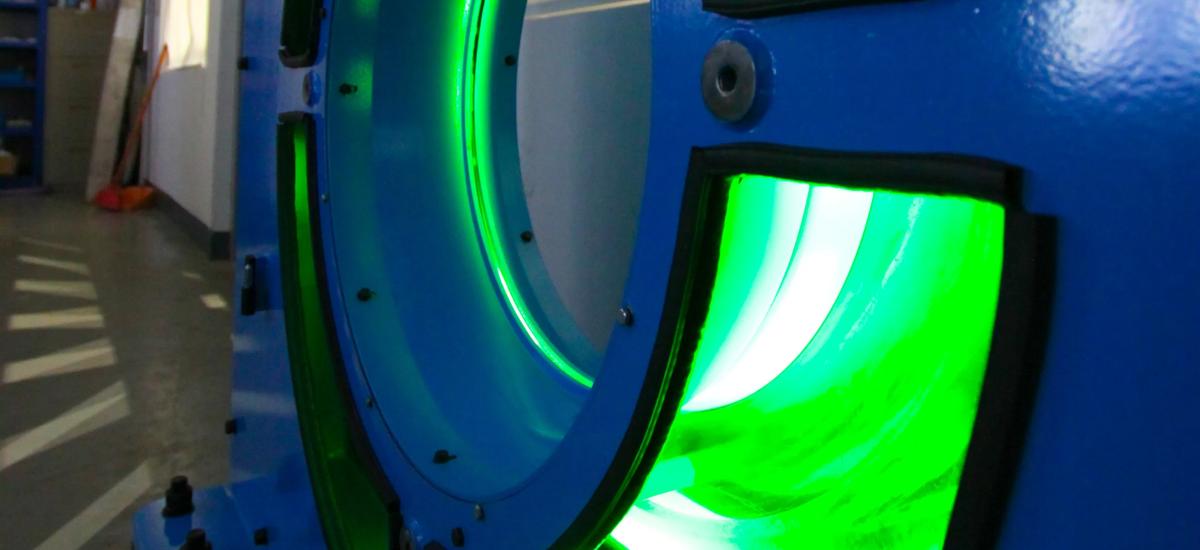

The Statis gauge provides a lower-cost option for the measurement of long products, delivering accurate measurement of key parameters and maximizing the return on investment. This rod and bar profile gauge uses a fixed-position multi-camera configuration with LED backlights, which continuously measure the dimensions and position of the product. The positional information is then used to calculate the actual corrected dimensional measurement of the product. The solid-state system has no moving parts, making it a very robust and reliable solution requiring minimal maintenance.

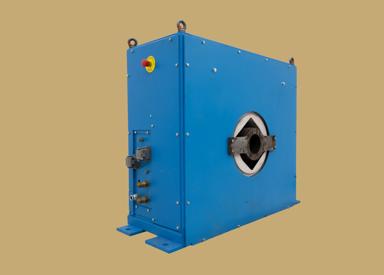

The basic gauge is equipped with two cameras but can easily be upgraded to four cameras for measuring larger profiles. The cameras are mounted within the steel frame of the gauge, protected from the mill environment. The gauge can be mounted on a trolley to allow easy withdrawal from the production line, further reducing downtime.

The Statis system offers continuous, real-time product data transmission from the gauge head to the operator workstation, where it can be viewed on a customizable screen. With an optical pyrometer, bar temperature can also be measured, allowing conversion of hot-state product dimensions to final dimensions at ambient temperature. This data can be displayed on optional large screens in the mill environment, near the production line, enabling operators to track and adapt the process swiftly to maintain optimal performance and quality.

The Statis system’s intuitive interface and software make it accessible to all personnel levels. Its data storage options facilitate easy retrieval and display of historical data, enabling quick diagnosis of any issues. In essence, the Statis rod and bar profile gauge delivers reliable, precise real-time measurements of long products, ensuring consistent, high-quality production, increased yield, and reduced downtime.

Benefits of the Statis Rod and Bar Profile Gauge

• The Statis is all solid-state with no moving parts, making it a robust and reliable system
• Strong, simple, and low-maintenance solution
• Modular construction allowing for easy upgrades to add further measurement modules
• Compact design for easy installation in existing lines
• Low cost
