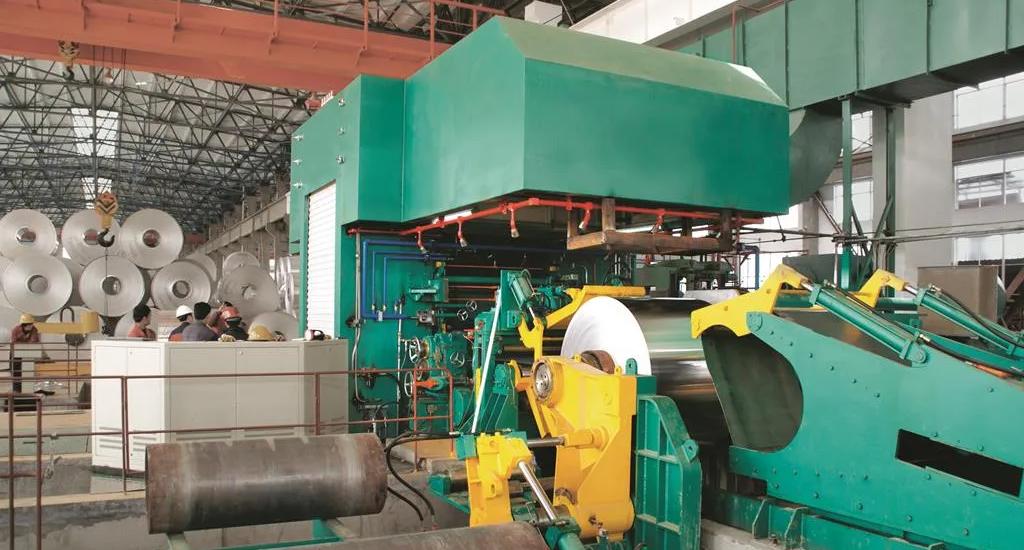

Automation and Modernization for Aluminum Cold Rolling Mill

The Aluminum Cold Rolling Mill Automation system is designed to support managers, operators, and maintenance engineers in cold rolling mills who strive to enhance production efficiency, improve product quality, and reduce operational costs. This system accomplishes these goals by increasing precision in flatness and thickness quality and fully automating the rolling and production processes.

The Aluminum Cold Rolling Mill Automation system integrates advanced control technologies to ensure precise operation and high-quality outputs. Its key features are crucial for maintaining tight tolerances and achieving high-quality results in flatness and thickness precision. The system utilizes model-based flatness optimization to enhance the performance of all available actuators in the mill stand, ensuring optimal flatness results for the strip. This flexibility allows the system to adapt to various mill configurations, meeting diverse production requirements.

The system provides precise control by integrating models and intelligent algorithms, significantly reducing flatness errors and improving overall product quality. Its modern human-machine interface design supports intuitive operation, guiding operators through the mill's daily running. Furthermore, the system includes a sophisticated thickness control algorithm using all available measurement signals and actuators to ensure the high product quality. This enables the selection and implementation of optimal control strategies tailored to specific production needs.

The scalable Level 2 system, with the mill setup unit as its foundation and rolling models as its extension, ensures real-time control and monitoring of the production process, optimizing operations and enhancing integration with other automation levels. Comprehensive safety measures and a seamless integration architecture support robust solutions for complex rolling processes, enhancing operational efficiency.

Aluminum Cold Rolling Mill Automation Features

• Level 2 integrates rolling models based on the mass flow concept to optimize load distribution and speed settings for each rolling stand, ensuring each strip segment is processed under optimal conditions. Additionally, temperature models determine the strip temperature.
• Automatic gauge control incorporates feed-forward, feedback, and mass flow controls to maintain precise strip thickness quality.
• Feed-forward control: Corrects gauge deviations effectively by anticipating material conditions.
• Mass flow control: ensures consistent strip thickness by considering entry and exit speeds.
• Feedback control: ensures precise strip thickness and flatness by continuously adjusting the roll gap and tension based on real-time sensor data. This process maintains consistent product quality and enhances operational efficiency by automatically correcting deviations from desired specifications.
• Mill setup unit: facilitates process automation by assisting operators in setting up the mill for rolling products, communicating with basic automation and production management systems for efficient data exchange.
• Precision control systems combine the speed encoder signal of drives with coiler tension control to ensure precise speed control and strip tension regulation, maintaining consistent and optimized strip thickness control.

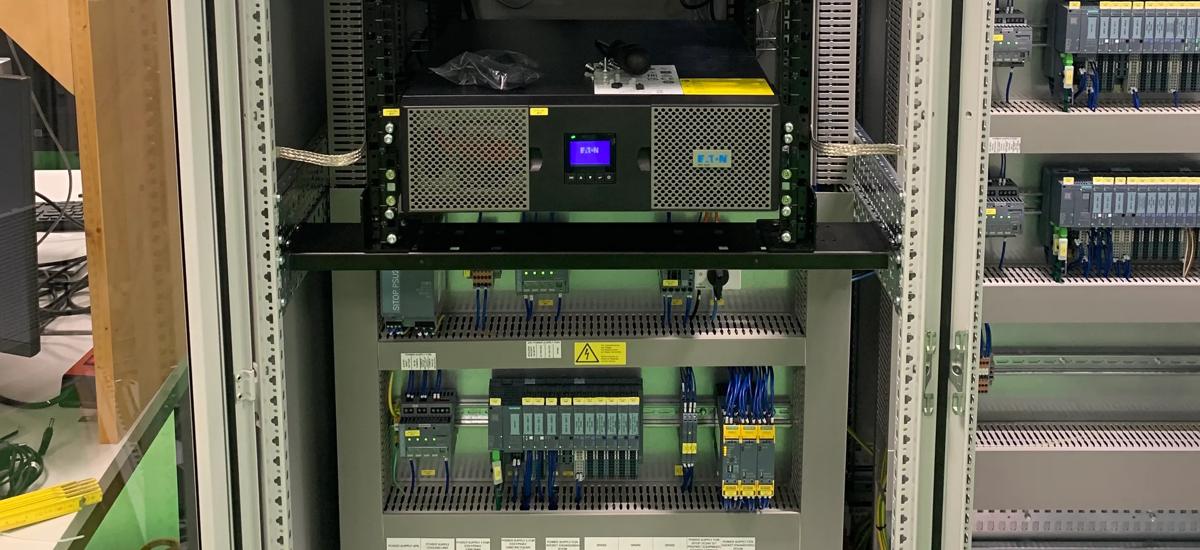

• Automation and control integration: This integrates with other automation systems, including basic automation (Level 1) and process automation (Level 2), ensuring smooth data flow and coordination across the production line. This integration supports advanced features like coil tracking, setpoint management, and production data logging.
• Process data analysis: offers real-time data acquisition and analysis for improved process transparency and troubleshooting.
• Digital and automation enhancements: This feature includes digital assistants, a central operation cockpit (COC), and advanced technological controls for enhanced process control and optimization.
• Material and coil tracking: ensures accurate tracking from entry to exit, enhancing operational efficiency and reducing errors.

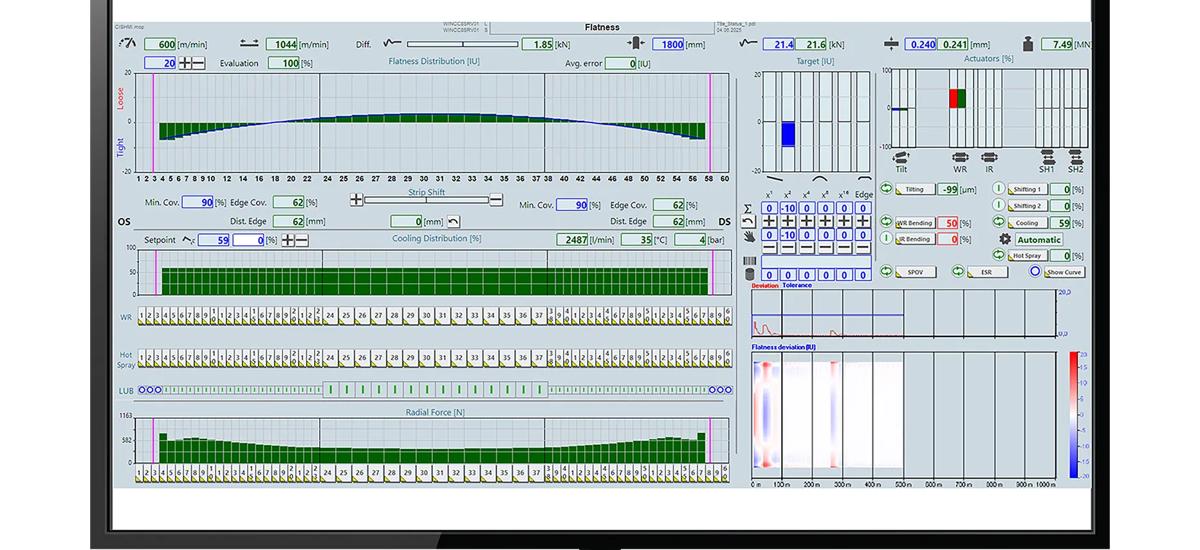

• Advanced HMI and visual display system: This system features a comprehensive human-machine interface (HMI) that provides operators real-time data visualization and control. It includes process area displays, diagnostic screens, and operator control strategies that facilitate efficient monitoring and management of the production line.

Aluminum Cold Rolling Mill Automation Benefits

• Superior strip quality: achieves superior thickness and flatness quality through automatic gauge control, Roll Eccentricity Expert, and model-based Flatness Expert.
• Operational efficiency: automates rolling processes, reducing operator intervention and minimizing downtime. This is achieved through Production Optimization Models or the mill setup unit with user-friendly pass schedule handling and mathematical calculations.
• Cost optimization: rolling processes with maximum yield reduce material waste, leading to significant cost reductions.
• Adaptable to varying production demands: ensures consistent performance across different product dimensions and alloy specifications.
• Modular and future-proof design: allows for step-by-step modernizations and enables customers to incorporate their own future developments, ensuring long-term adaptability.
• Diagnostic excellence: provides powerful diagnostic tools for easy troubleshooting and maintenance.
