WINLINK — THE DIRECT ROLLING OF BARS

Reduces the total final product cost. High-level technological solutions are combined in a unique compact installation. A small size plant can become competitive against the traditional larger Minimills.

Addressed to product-cost based markets, WinLink reduces the requirements of both the capital and operation expenditures. A reduction of the total final product cost is provided through high-level technological solutions in compact installation. A micro-size smart plant has become more than competitive to the traditional larger Minimills. WinLink is the innovative technology for endless or semi-endless production of long products from liquid steel without interruption. A high-speed caster is directly linked to a high-availability rolling mill, where the conventional billet furnace is replaced by an advanced induction unit, resulting in a compact and energy efficient production line. WinLink enables low investment expenditures, reduced transformation costs, significant energy savings, higher yield, smaller land requirements and reduced emissions of carbon dioxide. It represents the excellent solution to replace existing lines or to enter into new market areas.

WinLink direct rolling

WinLink permits the endless or semi-endless direct-rolling of long products from liquid steel without interruption. A high-speed caster is directly linked to a high-availability rolling mill, where the conventional billet furnace is replaced by an advanced induction unit. With smaller transformation costs, significant energy savings, higher yield, smaller land requirements and reduced emissions of carbon dioxide, a WinLink micro-size Minimill can be as competitive and attractive as a larger traditional Minimill.



Advantages of WinLink over a conventional Minimill

  • Smaller footprint and reduced civil works
  • Fewer equipment and lower infrastructure requirements.
  • Lower consumption of energy, fluids and consumables
  • Higher yield and reduced incidence of cobbles
  • Lower scale formation, no short bars or bar crops
  • Lower inventories and working capital
  • Fewer operating personnel
  • Finished rolled products produced from scrap in less than 2 hours.
  • Energy savings
  • Lower emissions of carbon dioxide and smaller water consumption
  • Softer visual impact of plant, with smaller buildings and lower usage of land
Debug: 4

TECHNOLOGY AND MODERNIZATION PACKAGES

Get striking results with incremental investments

NameShort Description
LiquiRob for Casting Robotic solution for continuous casting machines
Powder Expert Feeder with high precision powder control in the caster mold

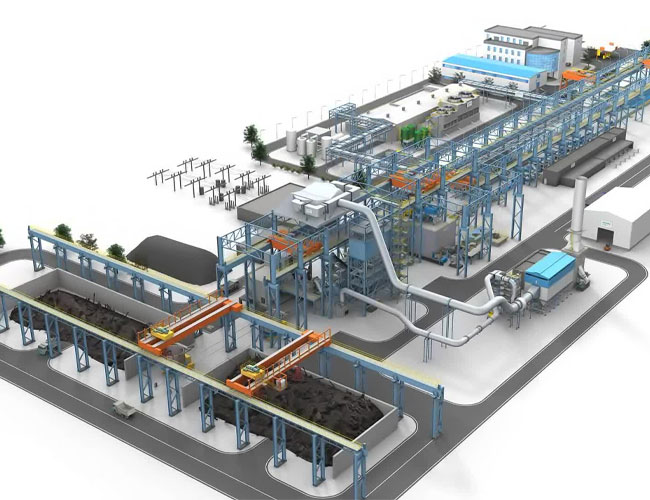

Reference Story: State-of-the-Art Minimill for Long Products

Customer
GPH Ispat, Chittagong, Bangladesh

Type of plant
A new Minimill with Quantum Electrical Arc Furnace and WinLink endless rolling technology

Technical data
640,000 tons per year of bars and sections

Our solution
The WinLink directly connects the high-speed caster with the rolling line, replacing the conventional reheating furnace with an induction furnace. The production is done with a virtually uninterrupted casting and rolling sequence, from scrap to finished bars in a short time and with low conversion costs

The project was executed in collaboration with former Primetals Technologies Italy, the predecessor of POMINI LRM.
