REVERSING COLD MILL

Solution for small to medium-sized production capacities and special steel grades.

In Reversing Cold Mills, the tension reels are placed at both ends of a single or two-mill-stand arrangement. Because the rolling parameters can be quickly changed for each coil, Reversing Cold Mills are ideal for smaller-lot production of various product types, including high-grade silicon steel. The compact size and simple design allow easy access to equipment and machinery for maintenance purposes, and operation can be stopped and restarted more flexibly. The advanced features of Primetals Technologies’ Reversing Cold Mill with UC-MILL principle allow for stable operation and uncompromising quality of strip to meet strict tolerance requirements.

Variety of reliable mills based on UC-MILL principle

​Single-stand Reversing Cold Mill

A single-stand cold rolling mill is capable of producing 100,000 to 400,000 t/a depending on product mix. Rolling schedules can be carried out with an even or odd number of passes to maximize mill availability and performance. UC-MILL with work roll bending, intermediate roll bending, intermediate roll shifting, and all-straight-roll applicaton ensures enhanced flatness control. Strip flatness measuring equipment mounted at one or both ends of the mill, combined with multi-zone work roll cooling, mean that the highest demands for flatness are met.

Two-stand Reversing Cold Mill

Primetals Technologies' two-stand Reversing Cold Mills combine the flexibility of single-stand reversing mills with the capacity of conventional coil-to-coil tandem mills at substantially reduced investment costs. Steel rolled in two-stand reversing cold mills is suitable for a wide range of applications, offering the best possible performance in terms of quality and productivity. A two-stand Reversing Cold Mill can deliver capacities of between 300,000 t/a of thin-gauge products or 1,000,000 t/a and more of thicker-gauge products.



Main benefits of Reversing Cold Mills

  • High production capacity and yield
  • Flexible, low-cost rolling of a wide range of products, especially for small order lots
  • Tight strip thickness and shape tolerances
  • Minimum off-gauge length
  • High surface quality
  • Second stand can serve as a skin pass mill


​HYPER UC-MILL

The HYPER UC-MILL is a newly developed mill featuring even smaller work rolls to achieve high performance of strip gauge and flatness control for High Strength Steel (HSS) rolling. It is also applicable for production of high-grade, non-grain-oriented silicon steel and thin products.


Features:

  • Smaller work rolls and optimized roll diameter combination with intermediate and back-up rolls
  • Work roll-driven system for high flatness controllability
  • Development of a high strength MH spindle for work roll drive

The optimized combination of roll diameters brings out the best performance of HYPER UC-MILL. In overall comparison, the HYPER UC-MILL’s work roll diameter is reduced by 20-30% from that of the standard UC-MILL to further reduce rolling force and the number of passes. MH Spindle is the fundamental technology to transmit the required torque for HYPER UC-MILL.



Want to know more about Integrated Plants? Go to Integrated Plants & Solutions.



Debug: 4

Complete automation and process control for Reversing Cold Mills

Plant productivity and product quality are substantially depending on the quality of plant automation, process control, and available process optimization functions.

To get the best performance out of a plant, Primetals Technologies provides add-on specific optimization solutions for further improvement of production efficiency and strip quality, besides standardized high performance automation system.

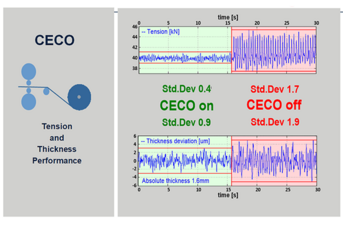

Excellent Strip quality with:

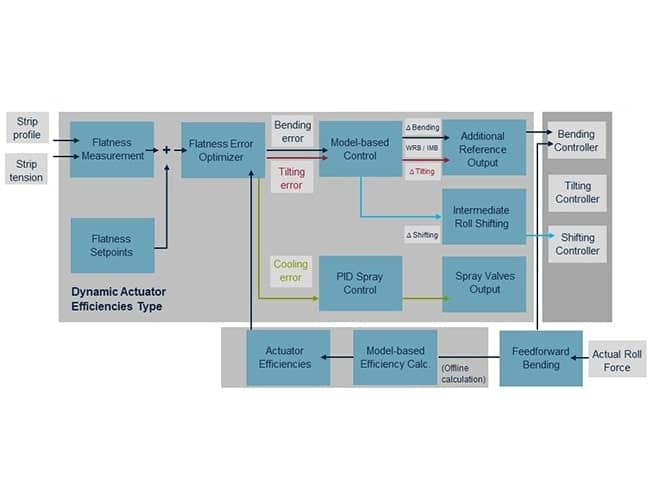

For Reversing cold mills a highly optimized solution is available matching all kind of mill stand configurations. According to the complexity of production a look-up table or rolling model based mill setup can be chosen.



Debug: 4

TECHNOLOGY AND MODERNIZATION PACKAGES

Get striking results with incremental investments

Upgrade to HYPER UC-MILL Upgrade conventional mill to Hyper UC-MILL with minimal modification
PL-TCM Coupling Couple CPL and TCM processes in one line
Additional UC-MILL stands Additional UC-MILL stand installation for Tandem Cold Mill
ALU TCS Compact and integrated technological control system for single cold rolling mills
TorqueMon Inline measurement of roll spindle torque for rolling mills
Integrated Solenoid Valve (ISV) Spray System ISV Roll coolant spray bars for hot and cold rolling mill strip flatness control
Air Bearing Shapemeter Shape measurement of rolled metal sheet and foil
Position Transducer Position measurement of rolling mill hydraulic capsule
Modular Coil Shuttle System (MCS) Rail-based, fully automated modular coil transport system

Lifecycle Services — improve performance while reducing costs

Service and support from a single source – fast, experienced, reliable

As your lifecycle partner, we provide you with comprehensive operational support, which helps you operate your plant at the lowest cost possible. Our portfolio includes maintenance and repair services as well as the fast delivery of original manufacturer components, produced in-house according to the highest standards of quality.

We fully integrate maintenance organizations into our customers’ organizations, thereby proving what it means to be a true lifecycle partner. The result of this win-win relationship between steel plant operators and Primetals Technologies is continuous improvement in equipment performance, product quality, and total cost of ownership.

Our customers can rely on fast and uncomplicated support in the event of an unexpected component breakdown, wherever their facility may be located. Backed by global resources and a worldwide supplier chain, we can promptly provide you with top-quality original spare and wear parts at competitive prices. We keep a range of key parts in stock to ensure their fast availability.

Want to know more? Go to Primetals Technologies Lifecycle Services Site

Reference Story: HYPER UC-MILL, the world's most efficient Reversing Cold Mill

Customer:
Maanshan Iron & Steel Co., China

Type of plant:
Reversing cold mill for silicon steel production

Technical data:
Mill type: HYPER UC-Mill
Strip thickness: 0.35 ~ 0.65 mm
Strip width: 900 mm ~ 1,280 mm

Our solution:
The installation of a Hyper UC-MILL enabled the customer to produce high-grade silicon products. The mill is capable of rolling thinner and harder materials, which had been impossible to accomplish with a conventional Reversing Cold Mill.
